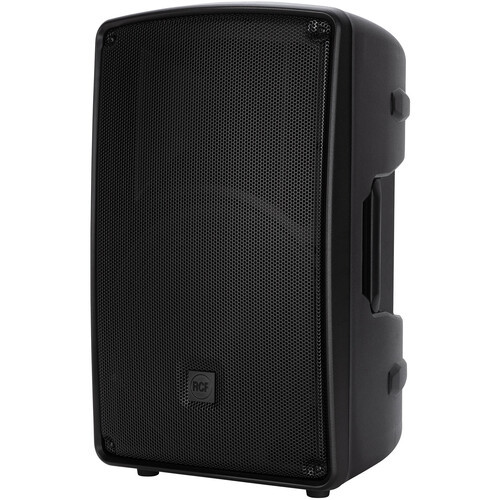

Audio engineers and touring companies in need of a professional and compact loudspeaker should check out the RCF HD 12-A MK5, a lightweight and portable active speaker, which delivers full-range sound with accurate high-frequencies, controlled deep bass, and stable SPL, even at high levels. With a design derived from the touring industry, it is well suited to withstand the rigors of live sound reinforcement or rentals applications in clubs, corporate spaces, houses of worship, mobile DJ setups, and more.

The HD 12-A MK5 is equipped with a 1400W peak, Class-D digital amplifier, which drives 1000W into the 12" woofer and 400W into the 1", titanium compression driver. The speaker delivers a frequency response of 45 Hz to 20 kHz with a peak SPL output of 130 dB, and wide, 90°H x 60°V coverage angles. The integrated DSP manages the loudspeaker processing, including crossover and EQ, soft limiter, and dynamic bass boost. Phase and amplitude are corrected using proprietary FiRPHASE technology conceived for delivering a natural and transparent sound, with a balanced stereo image.

At a Glance

• 130 dB max SPL
• 1400W 2-way amplifier
• DSP with FiRPHASE and Bass Motion Control
• 1” HF driver
• 12” woofer, high power, 2.5” voice coil
• 90 x 60°, wide dispersion constant directivity horn
• Silent Fan-less Class-D Amplifier
• Mylar/Ferrite driver, Kapton former coil

Superior Transducers

The powerful 1.4" diaphragm compression driver of the HD 12-A MK5 features extended dispersion control and high efficiency at long distance. The 12" woofer offers an extremely linear response and a precise, deep low-frequency control. All compression drivers and transducers are precision built, taking advantage of RCF's superior knowledge and experience dedicated to achieving extremely high standards.

Powerful Class-D Amplifiers

RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. D-Line amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminum structure, which not only stabilizes the amplifier during transportation, but also helps the fan-less heat dissipation. All the D-Line amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.

Highly Defined Performance

The cabinet shape makes it easy to use the speaker for stage monitoring. Two M10 threaded inserts are available for optional mounting hardware, making the speakers perfect for use in wall-mounted or flown install applications.

In/Out Connectors

The amplifier presents both XLR In/Out connectors and a 1/4" input for maximum connection versatility.

Switchable EQ Mode

A switchable EQ Mode makes it easier to select among two different equalization presets:

• BOOST: Extended response switch that slightly emphasizes the bass response for playback music and low volume applications
• FLAT: Linear response switch, when the speaker is used to amplify a live mix.

The amplifier has a built-in limiter circuit to prevent clipping or overdriving the transducers.

Mic / Line Switch

A useful Mic/Line switch helps to adjust the input sensitivity. When used for speech, the [Mic] setting allows using a microphone directly with the speaker. Set the selector to [Line] when using the speaker for live music or playback.

Volume Switch

An easy-to-reach volume knob on the back allows setting the overall volume of the speaker according to its application.

Status LEDs

3 status LEDs—Power / Signal / Limiter—are provided for monitoring the system.

Rental Proof

• D-LINE cabinets are molded on a special polypropylene composite material designed to dampen down vibrations, even at maximum volume settings. From molding to the final texture, D-LINE offers the maximum reliability and strength for use on the road. The reflex port has been resized to offer better efficiency.

• The RCF HD 12-A MK5 features 3 ergonomically designed forged handles with rubber handgrips, 2 on the sides, and one at the top. At the bottom, a rugged steel pole mount has been installed in all models. The new cabinet shape will allow every D-LINE model to be used as it is, standing on a pole, or for stage monitoring. Two M10 threaded inserts are provided for optional mounting hardware in installed sound applications.

New Perspective on Linearity

• RCF speakers are designed using a proprietary and advanced digital FiR technology, conceived to deliver transparent sound, absolute clarity, and perfect imaging to the listener.

• The special FiRPHASE filters allow for coherent distribution of sound for all listeners without phase distortions, ensuring minimum latencies in the system.
