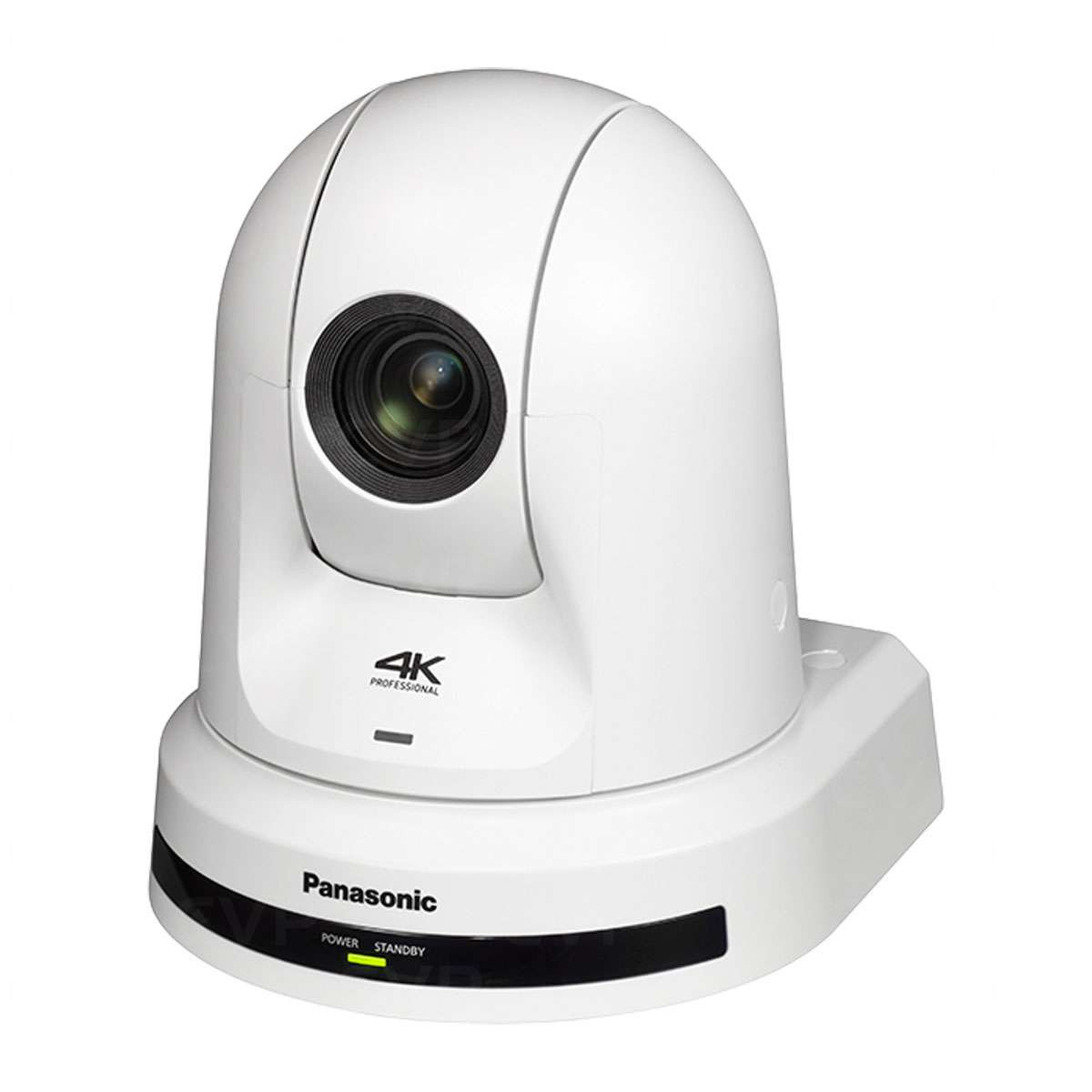

The AW-UE40 is a versatile and powerful PTZ camera that offers a 24x optical zoom, support for NDI|HX version 2 and SRT*1 protocol, and various IT certifications. It features a new direct drive system for improved responsiveness and quietness, as well as a unit design that makes the lens unnoticeable. The camera also has a Privacy Mode and Optical Image Stabiliser for added convenience and stability. It can be operated from a web GUI and comes with free auto tracking software. The UE40 is designed for use in a variety of markets, including multi-purpose events, entry-level studio configurations, higher education, and corporate installs.

The UE40 also offers a single-cable solution with PoE+ support, making installation easy in classrooms and auditoriums. It has a compact body and is lightweight, making it easy to handle and install on trusses or ceilings. The camera features a new 4K sensor, wide-angle lens, and optical zoom and image stabilisation for high-quality and stable footage. It also has a new processor for increased video processing tasks and supports various output interfaces such as HDMI and IP. The UE40 also offers a new web interface and simplified workflows, making it a valuable addition to any camera system.

Key Features:

• Maintain framing in a variety of situations
• Stable shooting even inside shots
• No connection to external equipment is required, allowing easy installation in classrooms and auditoriums

Please note: this software is a stripped down software and is run on the camera and not to be mistaken as a replacement for chargeable software that runs on a PC or Network.

The UE40 has a newly-designed and compact body with a weight of only 1.8kg, which makes it very easyto handle and to install in any kind of setting, especially when positioning the camera on trusses or ceilings.The UE40 has been designed to support the following markets:

• Multi purpose events
• Entry-level studio configurations
• Higher education
• Corporate installs

Single-cable solution

The UE40 also offers PoE+ support for camera power, control and video transmission over a single cable.

Direct drive system

The UE40 features the direct drive system based on Panasonic’s own technology for quiet and smooth vertical and horizontal direction, with a reduced operating sound of NC25 or lower. Direct drive also opens up more opportunities for PTZ operation including faster, precise movement and with higher accuracy in preset positioning – making it Panasonic’s fastest, quietest and most accurate PTZ yet.

Online Video Content support

When using the PTZ Virtual USB driver software and using a LAN connection, it is possible to obtain video and audio from the UE40 in the same way you would an USB camera. The UE40 is also equipped with Privacy Mode, which positions the lens towards the back when on standby.

Upgraded 4K sensor

The UE40 features a new 1/2.5-type 4K MOS sensor that produces stunning UHD video with true 4K resolution of 1,500 TV lines in UHD. The UE40 supports both HDMI and IP which makes it an ideal option for using within existing HD or 4K workflows thanks to its simultaneous video output feature.

Wide-Angle Lens

The AW-UE40 introduces a new wide-angle lens with a 74.1° field of view and a 24x optical zoom, enabling a wide area to be shot from a limited installation space, in addition to maintaining high image quality at high zoom ratios. This allows shooting in large indoor spaces. Intelligent zoom extends its capabilities to 28x in UHD and 36x in Full-HD.

Optical Zoom and Image Stabilisation

Optical Image Stabilisation (OIS) has been added to the unit to ensure smooth pan-tilt movement when in busier environments or moving or be placed onto a robotic system for example.

New Processor

The AW-UE40 includes the powerful Venus engine processor, making the PTZ incredibly responsive and capable of increased video processing tasks for higher image quality and lower latency.

4K & HD Analogue Outputs

The AW-UE40 supports up to 4K 30p/25p video at 3840 x 2160 to provide professional and high-quality shooting of moving images, as well as a variety of output interfaces such as HDMI and IP –which can be activated simultaneously for HD and 4K workflows.

New NDI, SRT & IP Outputs

There is also a wide variety of IP transmission protocols available. Out of the box, Secure Reliable Transport (SRT) is supported to maintain stability while transmitting high-quality video, even in unstable network environments. SRT allows video distribution over public internet in a secure and reliable way, as it offers encryption and as lost packets are automatically detected and resent.

The UE40 also supports the high-efficiency, low bandwidth NDI|HX version 2, which is available via an optional paid-for upgrade. This enables video transmission at low bitrates over a single LAN cable.

RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera directly.

New Web Interface & Simplified Workflows

A brand new web interface has been introduced for professional operators working within darker environments to easily navigate the advanced GUI for operators.

Panasonic offers an entire ecosystem of solutions to enable the new PTZ cameras to be smoothly introduced into existing camera systems. This includes use with its remote camera controllers, PTZ Control Center centralised control software, and its automatic tracking software for presentations and lectures, enabled by face recognition and human body detection.

USB2.0 DEVICE, Type C connector, no USB bus-powered function.

Only compatible with UVC (USB Video Class)
* UVC 1.0, UAC 1.0

*1: SRT: Secure Reliable Transport.
*2: NDI|HX: High efficiency low bandwidth NDI|HX.
*3: RTMP: Real-Time Messaging Protocol, RTMPS: Real-Time Messaging Protocol Secure

Provides hybrid online/offline environment.

Standard models suitable for use in online classes and briefing sessions

Remote cameras enhance the visual communication in a variety of applications ranging from online classes to online seminars. The AW-UE50/UE40 supports a compact design to blend in with the surroundings and operates very quietly to permit flexible use in any video shooting locations or conditions. The AW-UE50/UE40 offers high security and it is easy to install and operate for capturing stable images, so even people unfamiliar with video shooting or camera operation can utilise it. The excellent flexibility of the product simplifies wiring and operation. Linkage with online conference software or online application is possible, so online video streaming is easy to initiate. The AW-UE50/UE40 is a standard model perfect for people who want to utilise online video streaming more frequently or enhance the quality of online video streaming.

Camera unit performance and functions that assure high-quality video streaming

Featuring 4K resolution, wide-angle coverage of up to 74.1° horizontal and max. 24x optical zoom, the UE50/40maintains “the ambience of hall” intact in streaming videos.The Auto Tracking Software and image stabiliser function contribute to stable video streaming.
